Secure Secrets Management on AWS SAM with Secrets Manager

Authors

In the ever-evolving landscape of cloud computing, where data security reigns supreme, the management of sensitive information holds the key to a robust and resilient infrastructure. AWS Secrets Manager comes in handy as a crucial guardian of digital assets by providing a secure vault for managing access credentials, API keys, and other critical information on AWS.

In this blog, we’ll uncover the significance of AWS Secrets Manager, delving into its pivotal role in secure credential management and seamless integration with AWS services such as AWS Lambda, Amazon SQS and Amazon API Gateway. We will build a NodeJS API with AWS SAM where we will send our notes to Amazon SQS as messages after authenticating through basic auth credentials stored in AWS Secrets Manager.

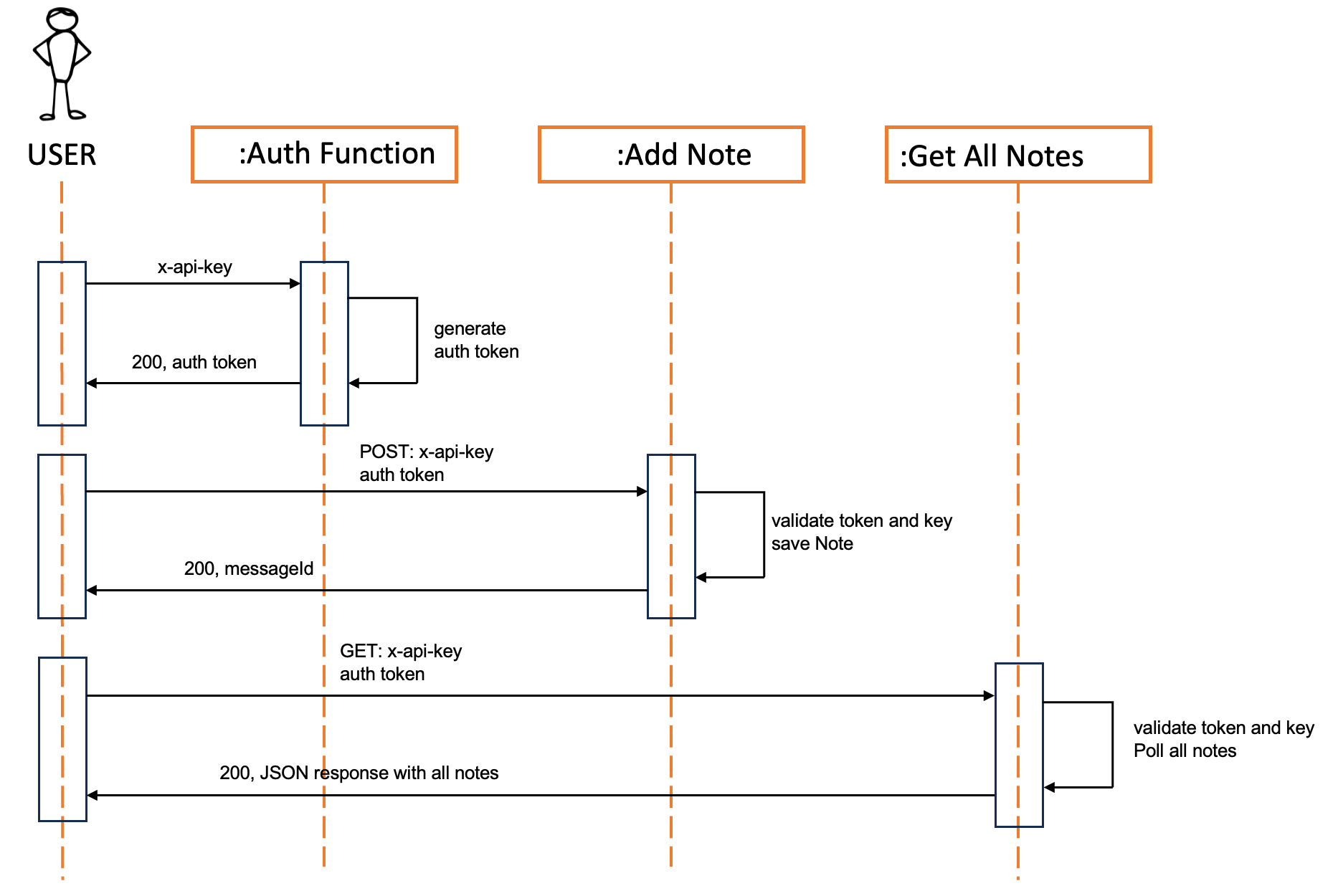

aws-sam-secrets-manager-sequence-diagram

Let’s get started

Prerequisite

  • Basic skill in NodeJs
  • AWS Account
  • AWS CLI
  • SAM CLI

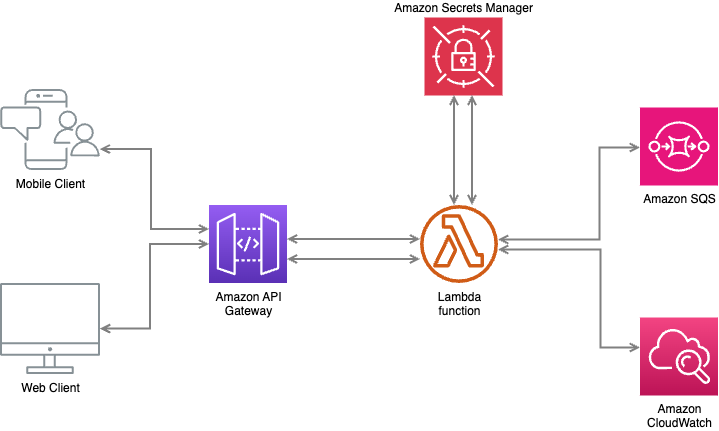

aws-secrets-sam

Code Repo

# clone the repo from github
$ git clone https://github.com/bensonmacharia/secrets-management-sam.git

Environment Setup

# create project directory
$ mkdir secrets-management-sam && cd secrets-management-sam
# create aws sam config file
$ touch template.yaml
# create files for our lambda functions logic
$ touch src/handlers/auth-token.mjs
$ touch src/handlers/add-note.mjs
$ touch src/handlers/get-all-notes.mjs
# open in vscode IDE
$ code .

Edit template.yaml file

The template.yaml serves as the foundational configuration file for our serverless application in AWS SAM. In our SAM application, we will have an API Gateway with API auth key set for all endpoints, an SQS queue to keep our notes, a Secrets Manager to store our basic auth credentials and three lambda functions.

template.yaml
# /template.yaml
AWSTemplateFormatVersion: 2010-09-09
Description: >-
  secrets-management-sam

Transform:
  - AWS::Serverless-2016-10-31

Resources:
  # Create an API Gateway with API auth Key
  ApiGatewayEndpoint:
    Type: 'AWS::Serverless::Api'
    Properties:
      StageName: Prod
      Auth:
        # Require API Key for all endpoints
        ApiKeyRequired: true
        UsagePlan:
          CreateUsagePlan: PER_API
          UsagePlanName: GatewayAuthorization

  # A Queue to keep our notes
  NotesSQSQueue:
    Type: AWS::SQS::Queue
    Properties:
      QueueName: NotesQueue
      VisibilityTimeout: 300
      MessageRetentionPeriod: 86400

  # A Secret Manager to keep our basic auth secret
  AuthTokenSecretManager:
    Type: AWS::SecretsManager::Secret
    Properties:
      Name: AuthTokenSecretManager
      Description: 'This secret has a dynamically generated secret token.'
      # Generate a random string 32 charatcers long for api Basic authentication
      GenerateSecretString:
        GenerateStringKey: 'authtoken'
        PasswordLength: 32
        ExcludeCharacters: '"@/\:;+*'''
        SecretStringTemplate: '{"username": "samuser"}'

  # This is a Lambda function config associated with the source code: auth-token.js for fetching the secret from secrets manager and creating an auth token
  authTokenFunction:
    Type: AWS::Serverless::Function
    Properties:
      Handler: src/handlers/auth-token.authTokenrHandler
      Runtime: nodejs18.x
      Architectures:
        - x86_64
      MemorySize: 128
      Timeout: 100
      Description: A HTTP GET method to fetch a BASIC auth secret from secrets manager.
      Policies:
        # Give Permissions to the AuthTokenSecretManager
        - AWSSecretsManagerGetSecretValuePolicy:
            SecretArn: !Ref AuthTokenSecretManager
      Environment:
        Variables:
          # Make secret manager name accessible as environment variable from function code during execution
          SECRET_MANAGER: !Ref AuthTokenSecretManager
      Events:
        Api:
          Type: Api
          Properties:
            RestApiId:
              Ref: ApiGatewayEndpoint
            Path: /v1/auth/token
            Method: GET

  # This is a Lambda function config associated with the source code: add-note.js for adding a note into our SQS Queue
  addNotesFunction:
    Type: AWS::Serverless::Function
    Properties:
      Handler: src/handlers/add-note.addNoteHandler
      Runtime: nodejs18.x
      Architectures:
        - x86_64
      MemorySize: 128
      Timeout: 100
      Description: Includes a HTTP post method to add one note to our SQS Queue.
      Policies:
        # Give Permissions to the AuthTokenSecretManager and the NotesSQSQueue
        - AWSSecretsManagerGetSecretValuePolicy:
            SecretArn: !Ref AuthTokenSecretManager
        - SQSSendMessagePolicy: # to allow this funciton to send message in queue
            QueueName: !GetAtt NotesSQSQueue.QueueName
      Environment:
        Variables:
          # Make secret manager name and queue url accessible as environment variable from function code during execution
          SECRET_MANAGER: !Ref AuthTokenSecretManager
          QUEUE_URL: !GetAtt NotesSQSQueue.QueueUrl
      Events:
        Api:
          Type: Api
          Properties:
            RestApiId:
              Ref: ApiGatewayEndpoint
            Path: /v1/api/note
            Method: POST

  # This is a Lambda function config associated with the source code: get-all-notes.js for polling our notes from the Queue.
  getAllNotesFunction:
    Type: AWS::Serverless::Function
    Properties:
      Handler: src/handlers/get-all-notes.getAllNotesHandler
      Runtime: nodejs18.x
      Architectures:
        - x86_64
      MemorySize: 128
      Timeout: 100
      Description: Includes a HTTP get method to poll our notes from the Queue.
      Policies:
        # Give Permissions to the AuthTokenSecretManager and the NotesSQSQueue
        - AWSSecretsManagerGetSecretValuePolicy:
            SecretArn: !Ref AuthTokenSecretManager
        - SQSPollerPolicy: # to allow this funciton to send message in queue
            QueueName: !GetAtt NotesSQSQueue.QueueName
      Environment:
        Variables:
          # Make secret manager name and queue url accessible as environment variable from function code during execution
          SECRET_MANAGER: !Ref AuthTokenSecretManager
          QUEUE_URL: !GetAtt NotesSQSQueue.QueueUrl
      Events:
        Api:
          Type: Api
          Properties:
            RestApiId:
              Ref: ApiGatewayEndpoint
            Path: /v1/api/notes
            Method: GET

Outputs:
  ApiGateway:
    Description: 'The URL is:'
    Value: !Sub 'https://${ApiGatewayEndpoint}.execute-api.${AWS::Region}.amazonaws.com/Prod/'
  ApiKey:
    Description: "You can find your API Key in the AWS console: (Put in the request HEADER as 'x-api-key')"
    Value: !Sub 'https://console.aws.amazon.com/apigateway/home?region=${AWS::Region}#/api-keys/${ApiGatewayEndpointApiKey}'

Creating the Auth Token

Here we will create a lambda function that when called through an API gateway endpoint, it fetches our credentials .i.e username and password from the AWS Secrets Manager and generates a basic auth credential which is then returned to the user in the API response.

auth-token.mjs
// /src/handlers/auth-token.mjs
import { GetSecretValueCommand, SecretsManagerClient } from '@aws-sdk/client-secrets-manager'

const clientsecret = new SecretsManagerClient()

// Get the secrets manager name from environment variables
const secretsManagerName = process.env.SECRET_MANAGER

/**
 * A HTTP post method for getting auth token.
 */
export const authTokenrHandler = async (event) => {
  if (event.httpMethod !== 'GET') {
    throw new Error(`getAuthToken only accepts GET method, you tried: ${event.httpMethod}`)
  }
  // All log statements are written to CloudWatch
  console.info('received:', event)

  // Fetch the Auth secret string from AWS Secrets Manager
  const secret_value = await clientsecret.send(
    new GetSecretValueCommand({
      SecretId: secretsManagerName,
    })
  )
  const auth_token = JSON.parse(secret_value.SecretString)
  console.info('Secret-String: ', auth_token)

  // Generate basic auth token and return in response data
  const username = auth_token.username
  const password = auth_token.authtoken
  const authToken = 'Basic ' + new Buffer(username + ':' + password).toString('base64')

  var message = 'Successfully authenticated. Use the token below to access other endpoints.'
  var status_code = 200

  const responseData = {
    message: message,
    token: authToken,
  }

  const response = {
    statusCode: status_code,
    body: JSON.stringify(responseData),
  }

  // All log statements are written to CloudWatch
  console.info(
    `response from: ${event.path} statusCode: ${response.statusCode} body: ${response.body}`
  )
  return response
}

Function to add a note in SQS Queue

This function will receive a POST request through the API gateway endpoint with the message/note on the body and authentication credential on the Authorization header. The function will validate the credential and then insert the note into Amazon SQS .

add-note.mjs
// /src/handlers/add-note.mjs
import { GetSecretValueCommand, SecretsManagerClient } from '@aws-sdk/client-secrets-manager'
import { SQSClient, SendMessageCommand } from '@aws-sdk/client-sqs'

const clientsecret = new SecretsManagerClient()
const clientsqs = new SQSClient()

// Get the secrets manager name from environment variables
const secretsManagerName = process.env.SECRET_MANAGER
// Get the SQS queue URL from environment variables
const sqsQueueURL = process.env.QUEUE_URL

/**
 * A HTTP post method to add a message to an SQS Queue.
 */
export const addNoteHandler = async (event) => {
  if (event.httpMethod !== 'POST') {
    throw new Error(`postMethod only accepts POST method, you tried: ${event.httpMethod} method.`)
  }
  // All log statements are written to CloudWatch
  console.info('received:', event)

  // Get token from the authorization header
  const authheader = await event.headers.Authorization

  if (!authheader) {
    throw new Error(`Authorization token required.`)
  }

  const auth = new Buffer.from(authheader.split(' ')[1], 'base64').toString().split(':')
  const user = auth[0]
  const pass = auth[1]

  // Get note from the body of the request
  const body = JSON.parse(event.body)
  const note = body.note

  // Fetch the Auth secret string from AWS Secrets Manager
  const secret_value = await clientsecret.send(
    new GetSecretValueCommand({
      SecretId: secretsManagerName,
    })
  )
  const auth_token = JSON.parse(secret_value.SecretString)

  const username = auth_token.username
  const password = auth_token.authtoken

  // Check if decoded token has same username and password as fetched from secret manager
  if (user != username || pass != password) {
    throw new Error(`Authorization credentials invalid. Try again`)
  }

  const params = {
    DelaySeconds: 0,
    QueueUrl: sqsQueueURL,
    MessageBody: note,
  }

  // Add a message into the SQS queue
  try {
    const resp = await clientsqs.send(new SendMessageCommand(params))
    var items = JSON.parse(JSON.stringify(resp))
  } catch (err) {
    console.log('Error', err)
  }

  const responseData = {
    message: 'Note sent to the Queue successfully',
    note: {
      Message: body.note,
      MessageId: items.MessageId,
      MD5OfMessageBody: items.MD5OfMessageBody,
    },
  }

  const response = {
    statusCode: 200,
    body: JSON.stringify(responseData),
  }

  // All log statements are written to CloudWatch
  console.info(
    `response from: ${event.path} statusCode: ${response.statusCode} message: ${response.message} body: ${response.body}`
  )
  return response
}

Function to fetch/poll all notes in SQS Queue

This function will fetch/poll all our notes from the SQS queue after receiving a GET request from the API gateway endpoint. The received authorization token will be validated first before sending the notes in the response body.

get-all-notes.mjs
// /src/handlers/get-all-notes.mjs
import { GetSecretValueCommand, SecretsManagerClient } from '@aws-sdk/client-secrets-manager'
import { SQSClient, ReceiveMessageCommand } from '@aws-sdk/client-sqs'

const clientsecret = new SecretsManagerClient()
const clientsqs = new SQSClient()

// Get the secrets manager name from environment variables
const secretsManagerName = process.env.SECRET_MANAGER
const sqsQueueURL = process.env.QUEUE_URL

/**
 * A HTTP get method to get all notes from an SQS Queue.
 */
export const getAllNotesHandler = async (event) => {
  if (event.httpMethod !== 'GET') {
    throw new Error(`getAllItems only accept GET method, you tried: ${event.httpMethod}`)
  }
  // All log statements are written to CloudWatch
  console.info('received:', event)

  // Get token from the authorization header
  const authheader = await event.headers.Authorization

  if (!authheader) {
    throw new Error(`Authorization token required.`)
  }

  const auth = new Buffer.from(authheader.split(' ')[1], 'base64').toString().split(':')
  const user = auth[0]
  const pass = auth[1]

  // Fetch the Auth secret string from AWS Secrets Manager
  const secret_value = await clientsecret.send(
    new GetSecretValueCommand({
      SecretId: secretsManagerName,
    })
  )
  const auth_token = JSON.parse(secret_value.SecretString)

  const username = auth_token.username
  const password = auth_token.authtoken

  // Check if decoded token has same username and password as fetched from secret manager
  if (user != username || pass != password) {
    throw new Error(`Authorization credentials invalid. Try again`)
  }

  const params = {
    QueueUrl: sqsQueueURL,
    MaxNumberOfMessages: 10,
  }

  // Fetch all messages from the queue
  try {
    const resp = await clientsqs.send(new ReceiveMessageCommand(params))
    var items = JSON.parse(JSON.stringify(resp))
  } catch (err) {
    console.log('Error', err)
  }

  const response = {
    statusCode: 200,
    body: JSON.stringify(items),
  }

  // All log statements are written to CloudWatch
  console.info(
    `response from: ${event.path} statusCode: ${response.statusCode} body: ${response.body}`
  )
  return response
}

Deployment

Let’s build our application.

$ sam build
Build Succeeded

Built Artifacts  : .aws-sam/build
Built Template   : .aws-sam/build/template.yaml

Let’s deploy our AWS SAM application

$ sam deploy --guided

Configuring SAM deploy
======================

	Looking for config file [samconfig.toml] :  Not found

	Setting default arguments for 'sam deploy'
	=========================================
	Stack Name [sam-app]: sam-secrets-management-app
	AWS Region [us-east-1]: us-east-1
	#Shows you resources changes to be deployed and require a 'Y' to initiate deploy
	Confirm changes before deploy [y/N]: y
	#SAM needs permission to be able to create roles to connect to the resources in your template
	Allow SAM CLI IAM role creation [Y/n]: Y
	#Preserves the state of previously provisioned resources when an operation fails
	Disable rollback [y/N]: N
	Save arguments to configuration file [Y/n]: Y
	SAM configuration file [samconfig.toml]:
	SAM configuration environment [default]:

	Previewing CloudFormation changeset before deployment
======================================================
Deploy this changeset? [y/N]: y

----------------------------------------------
CloudFormation outputs from deployed stack
----------------------------------------------
Outputs
----------------------------------------------
Key                 ApiKey
Description         You can find your API Key in the AWS console: (Put in the request HEADER as 'x-api-key')
Value               https://console.aws.amazon.com/apigateway/home?region=us-east-1#/api-keys/na7omt5fj7

Key                 ApiGateway
Description         The URL is:
Value               https://1xws2r3wmb.execute-api.us-east-1.amazonaws.com/Prod/
-----------------------------------------------

Successfully created/updated stack - sam-secrets-management-app in us-east-1

Testing

Let’s test our deployed application. We start with the token generation endpoint.

# Request to generate access token
$ curl --header "x-api-key: DipS7ZuqaD84PSN3qnR2r52qurnbriwu5NB8TCpI" https://1xws2r3wmb.execute-api.us-east-1.amazonaws.com/Prod/v1/auth/token

# Response with token
{
  "message": "Successfully authenticated. Use the token below to access other endpoints.",
  "token": "Basic c2FtdXNlcjpXJEU9XzEyUXdOfEhbbW9ZQ0xhXWldPns4RUdoWWctMw=="
}

Add a note into Amazon SQS

# Request to add a new note
$ curl -X POST --header "x-api-key: DipS7ZuqaD84PSN3qnR2r52qurnbriwu5NB8TCpI" --header "Content-Type: application/json" --header "Authorization: Basic c2FtdXNlcjpXJEU9XzEyUXdOfEhbbW9ZQ0xhXWldPns4RUdoWWctMw==" --data '{"note":"My First Note"}' https://1xws2r3wmb.execute-api.us-east-1.amazonaws.com/Prod/v1/api/note

# Response confirming the note has been saved
{
  "message": "Note sent to the Queue successfully",
  "note": {
    "Message": "My First Note",
    "MessageId": "808cdc1f-c3a3-4f8c-a942-2c5e32b30e8a",
    "MD5OfMessageBody": "168de9c3732df7b08082699ab613490c"
  }
}

Poll/fetch notes from Amazon SQS

# Request to fetch all notes
$ curl --header "x-api-key: DipS7ZuqaD84PSN3qnR2r52qurnbriwu5NB8TCpI" --header "Authorization: Basic c2FtdXNlcjpXJEU9XzEyUXdOfEhbbW9ZQ0xhXWldPns4RUdoWWctMw==" https://1xws2r3wmb.execute-api.us-east-1.amazonaws.com/Prod/v1/api/notes

# Response
{
  "$metadata": {
    "httpStatusCode": 200,
    "requestId": "f593b1c6-f551-557e-82c3-ec0bb33f3f3a",
    "attempts": 1,
    "totalRetryDelay": 0
  },
  "Messages": [
    {
      "MessageId": "1ba0e54b-f0a6-4914-9f0a-156005256f4d",
      "ReceiptHandle": "AQEBR3hoqeKR15aYqxLp0dITVdtENIx2DtxYA6R+lSrOz453AUtPeC8B2GiHQeCi9Wu6BdtuGz6ONIUiES1dOI9GM3GfL7PwMJqeVtzYUXj+fX4iiuQ0LVs+OrM5Jw9OA+R4TmcAYR/HTgeBY83/2FWYNitZcKNbfi3fnxmX3iFQT4z+OiOFHtsY+Ddjp4x64rEq6PPk/O32zgvIetKPDLgruMynC/2Uk50OQkszlqS/hZLFWeHuKN1W8peqCzrcaeDfPomGeoi1kP75Qfcs0m+2d3/OTSpKkACR+yy0YQ5WNdQldG1yIGIRQC6vrzGoMEzNDAOaqf4MtE307ljnNzVL8TYThTGq36hoktqZo9U5709RcnoL52GYg8gTGN+/L/e2h7Gojnv7tBuImdpyF5bmRg==",
      "MD5OfBody": "984bd8254068edc942cb19bff3a78249",
      "Body": "My Second Note"
    }
  ]
}

All the API call logs are recorded on Amazon CloudWatch.

Clean Up

Remember to clean up after you are done testing the application. Using SAM CLI you can:-

$ sam delete --stack-name sam-secrets-management-app
	Are you sure you want to delete the stack sam-secrets-management-app in the region us-east-1 ? [y/N]: y
	Are you sure you want to delete the folder sam-secrets-management-app in S3 which contains the artifacts? [y/N]: y

Deleted successfully

In conclusion, as businesses increasingly rely on cloud solutions, the significance of robust credential management becomes apparent, and AWS Secrets Manager as demonstrated emerges as a potent solution. Storing, retrieving and managing secrets on AWS Secrets Manager is evidently easy and multiple AWS SDKs are readily available to support these capabilities within the code. AWS Secrets Manager also easily integrates with other AWS services making it usable in different kind of deployments, be it, serverless or traditional architectures.
